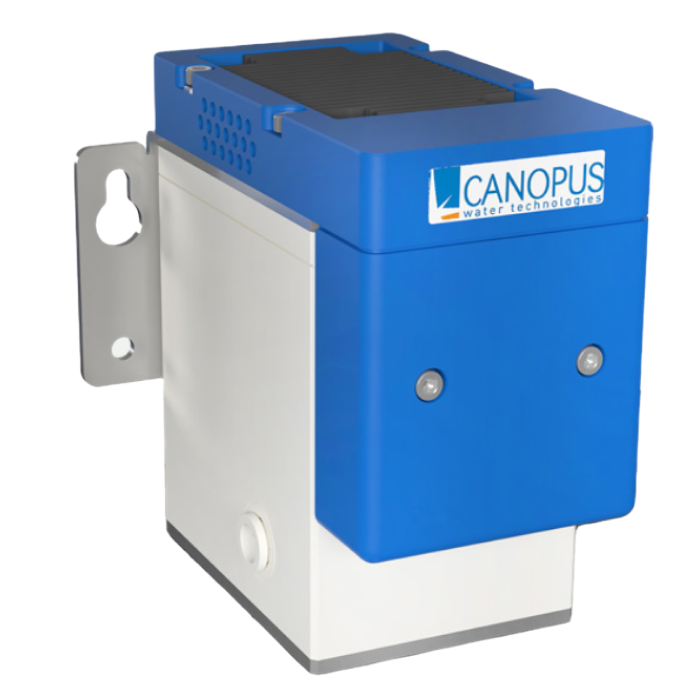

C-UV200p Ultraviolet LED System – 2 GPM, 20 mJ/cm², 2.5W Compact UV Disinfection
Lead Time: 6–8 Weeks (Factory Direct)
C-UV200p Ultraviolet LED System – 2 GPM, 20 mJ/cm², 2.5W Compact UV Disinfection
The C-UV200p ultraviolet LED system is designed for low-flow water disinfection in residential, point-of-use, and light commercial applications. It delivers up to 2 GPM with a UV dose greater than 20 mJ/cm² for effective microbial control.
This compact unit operates on 85–240 VAC and features built-in diagnostics with UV intensity alarms and service hour tracking. Its low power consumption of 2.5W ensures energy-efficient operation.
With natural convection cooling and no fans required, the C-UV200p offers quiet performance and easy installation using push-fit 1/4” QC connections.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C-UV200p |
| Type | Ultraviolet LED Water Disinfection System |
| Maximum Flow Rate | 2 GPM (8 LPM) |
| UV Dose | > 20 mJ/cm² |
| Operating Pressure | 10 – 100 PSI |
| Power Supply | 85–240 VAC, 50–60 Hz |
| Power Consumption | 2.5 W |
| Dimensions (H x W x D) | 3.5” x 2” x 3.65” |
| Inlet / Outlet Ports | Push-fit 1/4” QC |
| Shipping Weight | 2 lbs |
| Maximum Water Temperature | 40°C |
| Cooling System | Natural convection (no fans required) |
| Control System | UV monitoring with alarms and service hour tracking |
| Applications | Point-of-use systems, drinking water, small filtration systems |
Applications & Use Cases – C-UV200p UV Water Disinfection System (2 GPM)
The C-UV200p UV water disinfection system (2 GPM) delivers compact, chemical-free water purification for wellness and food-grade applications. Its advanced LED UV technology eliminates bacteria, viruses, and pathogens instantly, ensuring clean, safe, and high-quality water in low-flow systems.
Hot Tubs & Cold Plunge Applications
The C-UV200p is ideal for hot tubs, cold plunges, and wellness systems that require clean and safe water without heavy chemical use.
-
Hot tubs and spa systems
-
Cold plunge pools and recovery tubs
-
Wellness centers and residential spa setups
Key benefits: improves water clarity, reduces chlorine use, and eliminates odors while enhancing user comfort.
Food & Beverage Applications
Designed for food processing and beverage systems, the C-UV200p supports safe and hygienic operations.
-
Food processing water treatment
-
Beverage production and dispensing systems
-
Commercial kitchens and food service
Key benefits: reduces contamination risk, supports food safety, and extends product shelf life without chemicals.
Why Choose the C-UV200p UV System
-
Chemical-free water disinfection (no chlorine or bromine)
-
Compact design for tight installations
-
LED UV technology with low maintenance
-
Energy-efficient operation with no heat transfer
-
Improves water quality, clarity, and odor
How UV LED Water Disinfection Works
The C-UV200p UV system uses high-intensity UV LED light to damage the DNA of microorganisms. This prevents bacteria, viruses, and pathogens from reproducing. The process is instant, safe, and chemical-free.
The C-UV200p (2 GPM) UV water disinfection system is the ideal solution for hot tubs, cold plunges, and food & beverage applications that require compact, reliable, and chemical-free water treatment.
FAQ's
What is the flow rate of the C-UV200p system?
The C-UV200p supports a maximum flow rate of 2 GPM (8 LPM), ideal for point-of-use and low-flow applications.
What UV dose does this system provide?
It delivers a UV dose greater than 20 mJ/cm², ensuring effective microbial control.
Is this system energy efficient?
Yes, it consumes only 2.5W, making it highly energy-efficient for continuous operation.
Does it include monitoring and alarms?
Yes, the system includes built-in diagnostics with alarms for low UV output and service hour tracking.
What type of connections does it use?
It features push-fit 1/4” QC inlet and outlet connections for quick and easy installation.
Does the unit require cooling fans?
No, it uses natural convection cooling and does not require fans or additional cooling systems.
