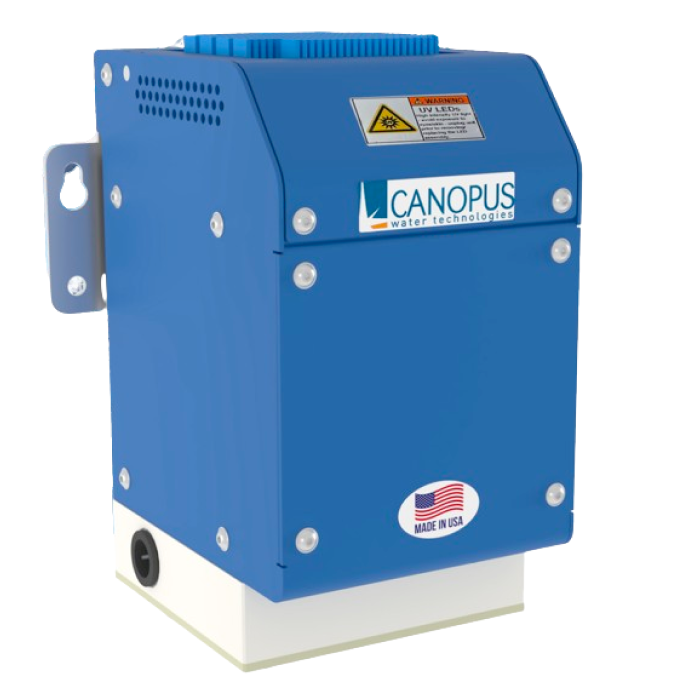

C-UV 200n UV System – 6 GPM LED Water Disinfection with WiFi Monitoring
Lead Time: 6–8 Weeks (Factory Direct)
C-UV 200n Ultraviolet LED System – 6 GPM, 40 mJ/cm², 20W Advanced UV Disinfection
The C-UV 200n ultraviolet LED system is designed for high-performance water disinfection in industrial, commercial, and advanced filtration applications. It delivers up to 6 GPM with a UV dose greater than 40 mJ/cm² for effective microbial control and enhanced water safety.
This system operates on 85–240 VAC and features an advanced control and diagnostics system with UV intensity alarms and service hour monitoring. Integrated WiFi connectivity provides real-time UV detector readouts for improved system visibility and performance tracking.
With natural convection cooling and no fans required, the C-UV 200n ensures quiet, low-maintenance operation. Its compact design and 1/2” quick-connect ports allow fast and easy installation in a wide range of water treatment systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C-UV 200n |
| Type | Ultraviolet LED Water Disinfection System |
| Maximum Flow Rate | 6 GPM (24 LPM) |
| UV Dose | > 40 mJ/cm² |
| Operating Pressure | 10 – 100 PSI |
| Power Supply | 85–240 VAC, 50–60 Hz |
| Power Consumption | 20 W |
| Dimensions (H x W x D) | 7” x 4” x 5 1/4” |
| Inlet / Outlet Ports | 1/2” QC |
| Shipping Weight | 8 lbs |
| Maximum Water Temperature | 40°C |
| Cooling System | Natural convection (no fans required) |
| Control System | UV monitoring with alarms and service hour tracking |
| Connectivity | WiFi with real-time UV detector readouts |
| Additional Features | Built-in on/off flow switch |
| Applications | Industrial water treatment, commercial filtration systems, OEM integration, process water disinfection |
Applications & Use Cases – C-UV200n UV Water Disinfection System (6 GPM)
The C-UV200n UV water disinfection system (6 GPM) delivers chemical-free, high-performance water purification for residential, marine, and emergency applications. Its advanced LED UV technology eliminates bacteria, viruses, and pathogens instantly, ensuring safe and reliable water in compact systems.
Marine & Yacht Applications
The C-UV200n is ideal for yachts, boats, and marine water systems where space and efficiency matter.
-
Onboard water tanks and storage systems
-
Yachts, sailboats, and luxury vessels
-
Chemical-free marine water purification
Key benefits: compact design, low power consumption, and instant UV disinfection without chemicals.
Emergency & Disaster Relief Use
This UV water disinfection system is a reliable solution for emergency and portable water treatment.
-
Disaster relief operations and field hospitals
-
Temporary shelters and remote locations
-
Backup water disinfection systems
Fast deployment. No chemicals. Immediate safe water.
Residential & Light Commercial Applications
Perfect for low-flow systems up to 6 GPM in homes and small businesses.
-
Whole-house and under-sink water treatment
-
Well water disinfection
-
Pre-treatment for RO systems
-
Restaurants, offices, and clinics
Why Choose the C-UV200n UV System
-
Chemical-free water disinfection (no chlorine or ozone)
-
LED UV technology for long life and low maintenance
-
Energy-efficient design for limited power environments
-
Improves water taste and odor
-
Compact and easy to install
The C-UV200n (6 GPM) UV water disinfection system is the ideal solution for marine environments, emergency preparedness, and compact water treatment systems requiring safe, instant, and chemical-free purification.
FAQ's
What is the flow rate of the C-UV 200n UV system?
The C-UV 200n UV system supports a maximum flow rate of 6 GPM (24 LPM), making it ideal for industrial and commercial water treatment applications.
What level of disinfection does this UV system provide?
It delivers a UV dose greater than 40 mJ/cm², ensuring effective microbial control and enhanced water safety.
Does the C-UV 200n include monitoring features?
Yes, it includes WiFi connectivity with real-time UV detector readouts, service hour tracking, and alarms when UV intensity drops below a preset level.
What power supply does the system require?
The unit operates on 85–240 VAC, 50–60 Hz, with a power consumption of 20W.
Does it require additional cooling systems?
No, the C-UV 200n uses natural convection cooling and does not require fans or auxiliary cooling systems.
What connection sizes are available?
It comes with 1/2” quick-connect (QC) inlet and outlet ports for easy and fast installation.
