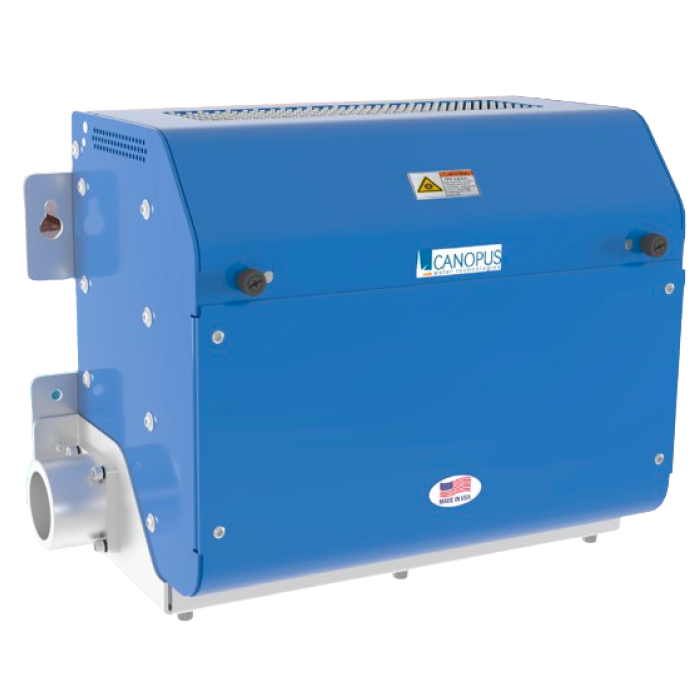

C-UV 200 Ultraviolet LED System – 20 GPM, >20 mJ/cm², 40W Industrial UV Disinfection
Lead Time: 6–8 Weeks (Factory Direct)
C-UV 200 Ultraviolet LED System – 20 GPM, >20 mJ/cm², 40W Industrial UV Disinfection
The C-UV 200 ultraviolet LED system is engineered for high-capacity water disinfection in industrial, commercial, and advanced filtration applications. Delivering up to 20 GPM, this system provides a UV dose greater than 20 mJ/cm² to effectively neutralize bacteria, viruses, and other pathogens.
Designed for reliability and performance, the unit operates on 85–240 VAC with 40W power consumption, ensuring energy-efficient operation for continuous use. The integrated control and diagnostics system monitors UV intensity, tracks service hours, and triggers alarms when performance drops below preset thresholds.
With built-in WiFi connectivity, users can access real-time UV detector readouts for enhanced monitoring and system optimization. The system also includes a built-in on/off flow switch, adding an extra layer of operational safety.
Its natural convection cooling design eliminates the need for fans, reducing maintenance and ensuring quiet operation. Combined with durable construction and flexible FNPT connections, the C-UV 200 is ideal for demanding water treatment environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C-UV 200 |
| Type | Ultraviolet LED Water Disinfection System |
| Maximum Flow Rate | 20 GPM (80 LPM) |
| UV Dose | > 20 mJ/cm² |
| Operating Pressure | 10 – 100 PSI |
| Power Supply | 85–240 VAC, 50–60 Hz |
| Power Consumption | 40 W |
| Dimensions (H x W x D) | 10.5” x 14” x 7.5” |
| Inlet / Outlet Ports | 1” or 1/4” FNPT |
| Shipping Weight | 40 lbs |
| Maximum Water Temperature | 50°C |
| Cooling System | Natural convection (no fans required) |
| Control System | UV monitoring with alarms and service hour tracking |
| Connectivity | WiFi with real-time UV detector readouts |
| Additional Features | Built-in on/off flow switch |
Applications & Use Cases – C-UV 200 UV Water Disinfection System (20 GPM)
The C-UV 200 UV water disinfection system (20 GPM) delivers chemical-free, high-capacity water purification for industrial, commercial, and high-flow applications. Its advanced LED UV technology neutralizes bacteria, viruses, and pathogens instantly, ensuring safe, reliable water in demanding environments.
Industrial & Process Water Applications
The C-UV 200 is ideal for high-flow industrial systems requiring continuous and reliable water disinfection.
Process water treatment systems
Cooling towers and closed-loop systems
Manufacturing and production lines
Pre-treatment for filtration and RO systems
Key benefits: high flow capacity, consistent UV performance, and real-time monitoring for critical operations.
Commercial & Facility Water Systems
Perfect for commercial facilities that require safe, clean water without chemical dependency.
Hotels, resorts, and large buildings
Hospitals and healthcare facilities
Schools and institutional water systems
Office buildings and public facilities
Key benefits: chemical-free disinfection, improved water quality, and low maintenance operation.
Food & Beverage Processing
Designed to meet the hygiene standards required in food-grade water applications.
Beverage production lines
Food processing plants
Wash-down and sanitation systems
Ingredient and process water treatment
Key benefits: safe, chemical-free water that protects product quality and meets compliance requirements.
OEM & Equipment Integration
The C-UV 200 is an excellent solution for integration into large-scale water treatment equipment.
OEM skid systems
Water treatment panels and assemblies
Custom filtration systems
Industrial equipment integration
Key benefits: flexible installation, FNPT connections, and reliable performance for system builders.
Why Choose the C-UV 200 UV System
Chemical-free water disinfection (no chlorine or ozone)
High flow capacity up to 20 GPM
LED UV technology for long life and reduced maintenance
Energy-efficient operation with 40W power consumption
WiFi connectivity for real-time monitoring and diagnostics
Built-in flow switch for enhanced operational safety
Natural convection cooling (no fans required)
The C-UV 200 (20 GPM) UV water disinfection system is the ideal solution for industrial and commercial applications requiring high flow, reliable performance, and advanced monitoring with chemical-free water purification.
FAQ's
What is the flow rate of the C-UV 200 UV system?
The C-UV 200 supports a maximum flow rate of 20 GPM (80 LPM), making it ideal for high-flow industrial and commercial water treatment systems.
What level of disinfection does this UV system provide?
It delivers a UV dose greater than 20 mJ/cm², effectively neutralizing bacteria, viruses, and other harmful microorganisms.
Does the C-UV 200 include monitoring features?
Yes, it features WiFi connectivity with real-time UV detector readouts, along with alarms and service hour tracking for proactive maintenance.
What power supply does the system require?
The unit operates on 85–240 VAC, 50–60 Hz, with an energy-efficient power consumption of 40W.
Does it require additional cooling systems?
No, the C-UV 200 uses natural convection cooling and does not require fans or auxiliary cooling systems.
What connection sizes are available?
It comes with 1” or 1/4” FNPT inlet and outlet ports, allowing flexible installation in various system configurations.
What is the maximum operating pressure and temperature?
The system operates within 10–100 PSI and supports a maximum water temperature of 50°C.
Does the system include safety features?
Yes, it includes a built-in on/off flow switch and alarm system to ensure proper operation and protect system performance.
