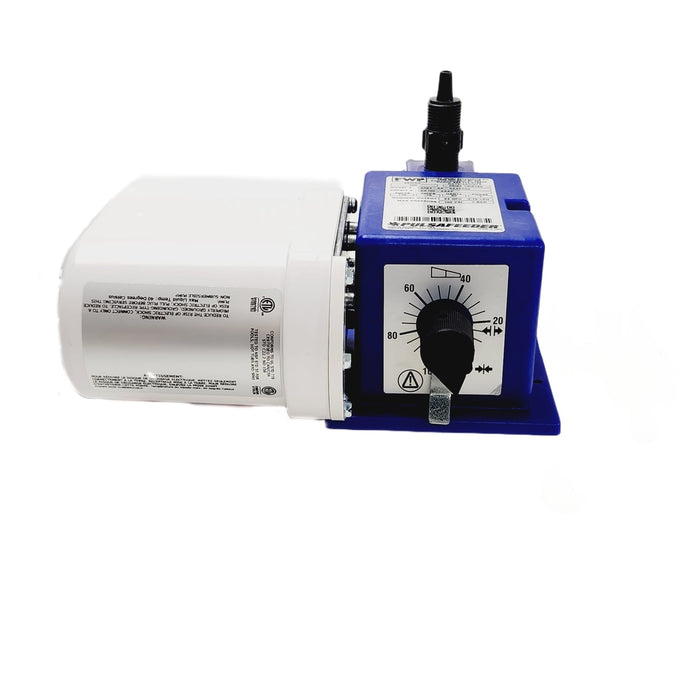

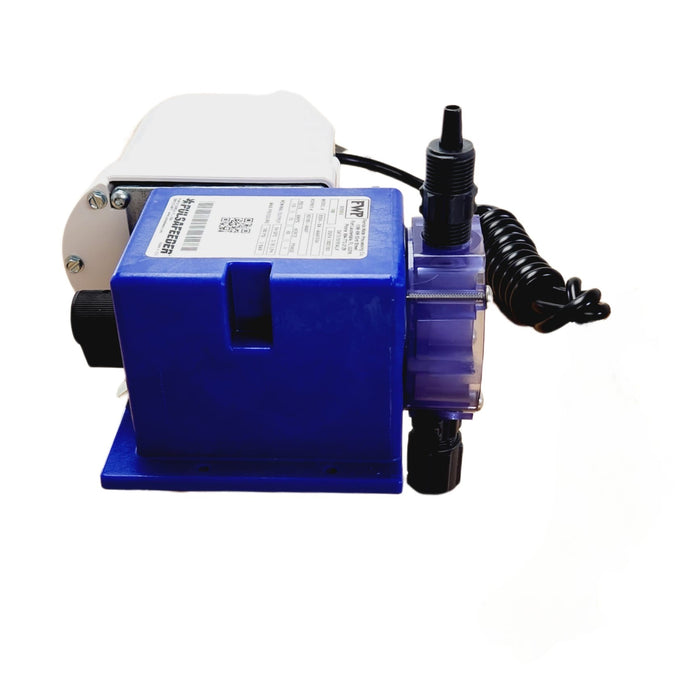

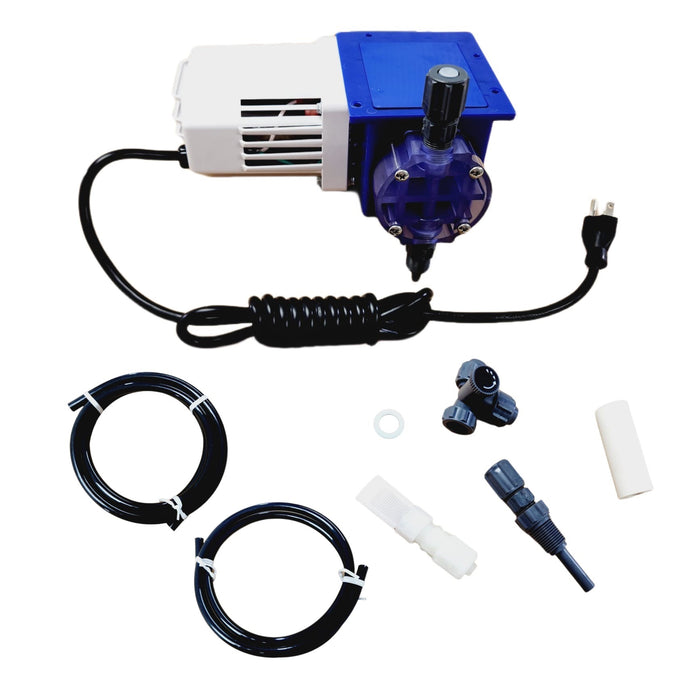

Pulsafeeder X030-XC-AAAAXXX Metering Pump – 100 Series, 30 GPD, 100 PSI, 230 VAC, Manual Control
Part Number: X030-XC-AAAFF04
$350.66
Ships in 5–10 Business Days
Pulsafeeder X030-XC-AAAAXXX Metering Pump – 100 Series, 30 GPD, 100 PSI, 230 VAC, Manual Control
The Pulsafeeder X030-XC-AAAAXXX metering pump from the CHEM-TECH Series 100 delivers dependable and precise chemical dosing for water treatment and industrial applications. It provides up to 30 GPD at 100 PSI and operates on 230 VAC, making it a strong choice for consistent chemical feed performance.
This motor-driven diaphragm pump features manual stroke and speed control for accurate, on-the-fly dosing adjustments. Its sealed drive assembly and chemical-resistant wetted materials ensure quiet operation, long service life, and protection in harsh environments. Compact and efficient, the X030-XC-AAAAXXX is ideal for professionals who need reliable manual control and durable construction.
Technical Specifications
| Specification | Details |
|---|---|
| Model | X030-XC-AAAAXXX (CHEM-TECH Series 100) |
| Flow Capacity | Up to 30 GPD (≈ 4.72 L/h) |
| Maximum Pressure | 100 PSI (≈ 7 bar) |
| Power Supply | 230 VAC, 60 Hz |
| Control Type | Manual stroke adjustment with output control knob |
| Wetted Materials | CSPE diaphragm, ceramic valve balls, PVC fittings |
| Tubing Connections | Suction ~7/16″ PVC, discharge ~1/2″ PE |
| Turndown Ratio | Approx. 10:1 |
| Drive Design | Sealed gearbox, motor-driven diaphragm |
| Valve System | Guided quad check valves, standard bleed assembly |
| Shipping Weight | Approx. 8 lbs (3.6 kg) |
| Applications | Water treatment, industrial chemical dosing, boiler bypass feeders, cooling and chemical feed systems |
