Pulsafeeder LC04SA-VHC1-XXX – Pulsatron Pump Series C 24 GPD – 80 PSI – 115 VAC
Part Number: LC04SA-VVC1-F40
$375.00
Ships in 5–10 Business Days

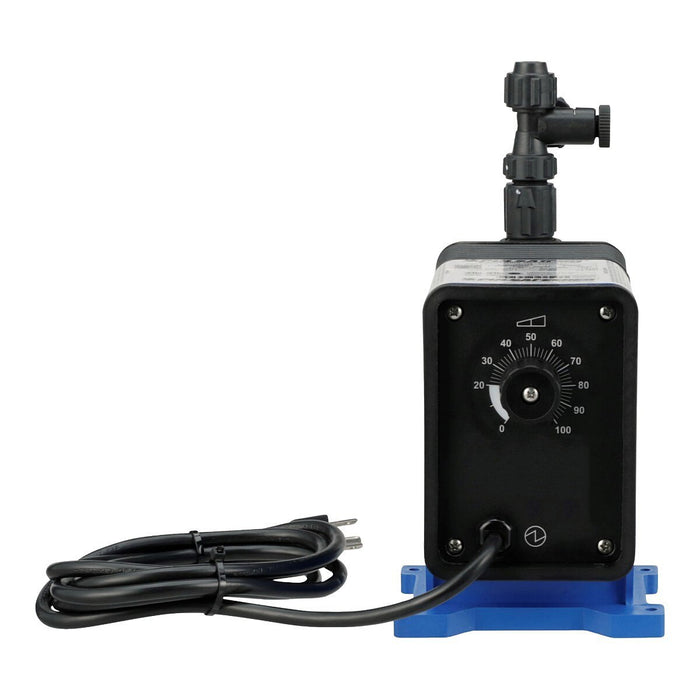

Pulsafeeder LC04SA-VHC1-XXX – Pulsatron Pump Series C 24 GPD – 80 PSI – 115 VAC
The Pulsafeeder LC04SA-VHC1-XXX PULSAtron Series C chemical metering pump provides accurate, medium-flow chemical dosing for industrial and water treatment applications. Rated at 24 GPD at 80 PSI, this solenoid-driven diaphragm pump operates on 115 VAC (50/60 Hz) and supports precise injection of disinfectants, oxidizers, pH adjusters, and corrosion inhibitors. Its VHC1 wet end with PVC pump head, Hypalon® (CSPE) diaphragm, and ceramic valves delivers excellent chemical resistance, reliable performance, and long service life in demanding dosing environments.
Technical Specifications
| Specifications | Details |
|---|---|
| Brand | Pulsafeeder |
| Model | LC04SA-VHC1-XXX |
| Series | PULSAtron Series C |
| Pump Type | Solenoid-driven diaphragm chemical dosing pump (positive displacement) |
| Flow Rate | Up to 24 GPD (gallons per day) |
| Maximum Operating Pressure | 80 PSI |
| Power Supply | 115 VAC, 50/60 Hz, single phase |
| Control Type | Dual manual control (independent stroke length and stroke frequency) |
| Operating Adjustment | Adjustable from zero to maximum during operation |
| Wet End Configuration | VHC1 |
| Turndown Ratio | Up to 10:1 |
| Drive Assembly | Fully enclosed, electronics protected in chemical-resistant enclosure |
| Average Power Consumption | Approx. 50 W |
| Mounting | Wall or panel mount |
| Chemical Compatibility | Suitable for common corrosive water treatment chemicals |
| Typical Applications | Water treatment dosing, pH control, chemical injection skids, indoor and outdoor installations |
