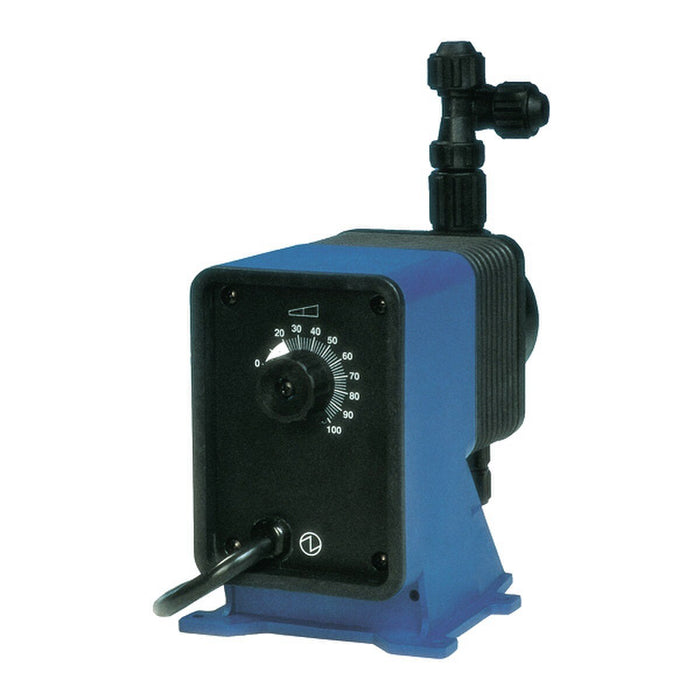

Pulsafeeder LC02SB-VHC1-XXX – Pulsatron Pump Series C – 6 GPD – 80 PSI – 230 VAC

The Pulsafeeder PULSAtron Series C chemical metering pumps use a positive displacement diaphragm design. While the pumps are in operation, the output volume can be adjusted from zero to maximum capacity. PULSAtron Series C guided check valves, with their cutting-edge seat and ball designs, offer precision seating as well as exceptional priming and suction life. The out timing circuit is extremely reliable and, by design, is nearly immune to temperature, EMI, and other electrical disturbances. Even after extended use, Series C pumps continue to meet pressure and capacity criteria. This is due to our high-quality solenoid and unique enclosure, which effectively dissipate heat. Agency Approved and water-resistant for tough outdoor and indoor applications.

Technical Specifications

• Model: LC02SB-VHC1-XXX
• Series: Pulsafeeder PULSAtron Series C
• Flow Rate: Up to 6 GPD (gallons per day)
• Max Pressure: 80 PSI
• Power: 230 VAC, 50/60 Hz, 1-phase
• Control Type: Dual manual control (independent adjustment of stroke length and frequency)
• Construction: VHC1 wet end configuration — includes a PVC (Polyvinyl Chloride) pump head, Hypalon® (CSPE) diaphragm, and ceramic valve components. This configuration is ideal for precision low-flow dosing of water treatment chemicals and compatible corrosive fluids in compact or remote installations requiring 230V operation.
• Mounting: Wall or panel mountable; compatible with Pulsafeeder PULSAtron Series C systems
•
